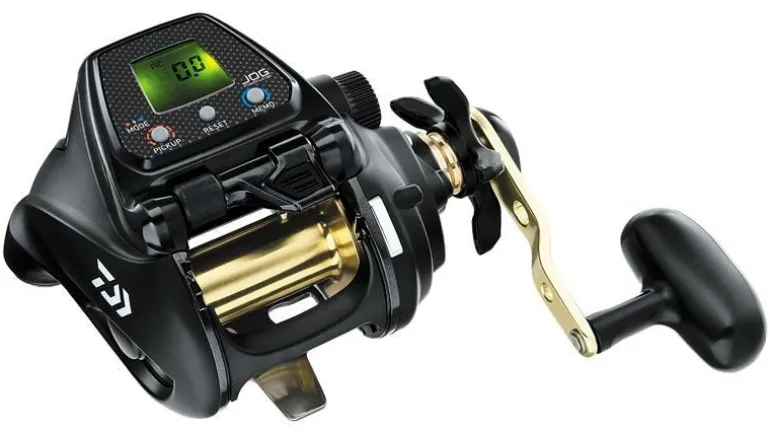

DAIWA TANACOM 500 ELECTRIC REEL

The Daiwa Tanacom Electric Reel (500 & 750) redefines deep-drop fishing with a lighter, more compact design that doesn’t compromise on power. Built for serious offshore anglers, this 12-volt electric Dendoh reel combines effortless operation with advanced technology, giving you the performance of high-end electrics in a user-friendly package.

Delivering a maximum continuous winding power of 70kg and retrieval speeds of up to 130m per minute, the Tanacom makes deep-water fishing more efficient than ever. Its exclusive Power Lever gives you instant control over speed and torque, while the digital line counter and LCD display track depth, line out, and distance retrieved — so you always know exactly where your bait or lure is working in the water column.

Perfect for targeting deep-sea species such as hapuka, blue eye trevalla, gemfish, and swordfish, the Tanacom’s programmable auto-stop and jigging functions allow precise, hands-free fishing, whether you’re deploying baits or working lures. Built with brass and aluminium gearing, sealed electronics, and corrosion-resistant components, it’s tough enough to handle the harshest saltwater conditions while remaining washable for easy maintenance.

Available in two versatile sizes, the Tanacom 500 and 750 deliver the ideal balance of power, capacity, and usability, making them the go-to choice for Australian anglers chasing big fish in deep water.

Product Features

• Powerful 12V motor – Up to 70kg winding power and 130m/min retrieval speed
• Power Lever control – Instant adjustment of speed and torque with one touch
• Digital LCD display – Shows line out, depth, and retrieval distance in real time
• Programmable auto-stop – Stops winding automatically when your rig reaches the surface
• Automated jigging function – Works lures and baits to your customised settings
• Magsealed body – Protects against salt, water, and dust intrusion for long-lasting performance
• Brass & aluminium gearing – Heavy-duty construction for reliability under load
• Washable sealed electronics – Easy maintenance and extended reel life
• Manual winding option – Backup control if needed
• 12V DC operation – Accepts a 12–16.8V range for convenience

Product Specifications

Model: Daiwa Tanacom Electric Reel (500 & 750)
Power Source: 12V DC (12–16.8V range)
Max Winding Power: 70kg continuous
Retrieval Speed: Up to 130m/minute
Current Draw: No load – 3A | Stall – 10A | Max power – 30A
Gear Material: Brass & Aluminium
Functions: Auto-Stop, Auto Jigging, Manual Winding
Display: Digital LCD Line Counter & Depth Readout
Body Protection: Magsealed sealed electronics, corrosion resistant
Design: Washable for easy cleaning

Frequently Asked Questions

Q: What species can I target with the Daiwa Tanacom 500 & 750?
A: These reels are ideal for deep-water species such as hapuka, blue eye trevalla, gemfish, ruby snapper, and swordfish.

Q: Can the Tanacom be used manually if the power fails?
A: Yes, both models include a manual winding option for added reliability.

Q: What’s the difference between the Tanacom 500 and 750?
A: The 750 offers greater line capacity, making it better suited for extreme depths and larger fish, while the 500 is lighter and easier to handle for mid-range deep dropping.

Q: How does the programmable jigging function work?
A: You can preset the reel to automatically work a lure or bait with specific movements, keeping your rig active without constant manual input.

Q: Is the Tanacom waterproof?
A: While not fully submersible, it features sealed electronics, Magsealed protection, and a washable design to withstand tough saltwater conditions.
