DAIWA MARINE POWER 3000 ELECTRIC REEL

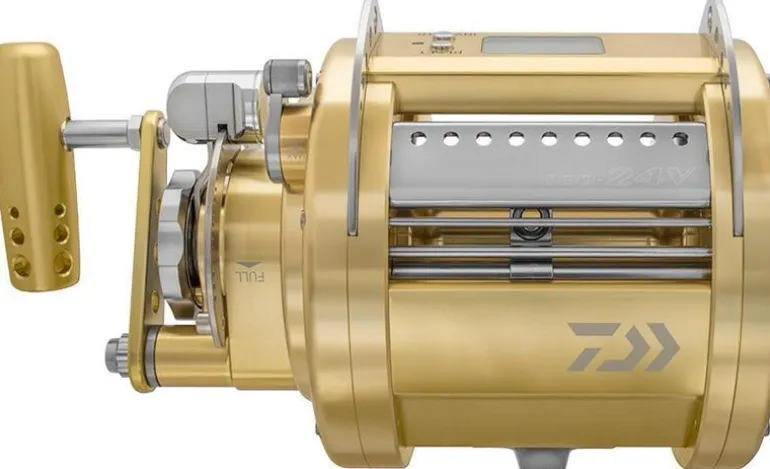

Daiwa Marine Power 3000 12v Electric Reel

Daiwa’s Marine Power 3000 takes deep-drop fishing to a whole new extreme and they don’t come any bigger or stronger. This powerhouse reel is designed to fish in the deepest water for deep dropping heavy rigs for the biggest fish that swim.

Marine Power is available 12- or 24-Volt configurations, offering significant advantages over the competition, which are commonly bulky, unwieldy electric reels. Its massive powerful electric motor delivers an amazing 80 kg of instant winding power and a maximum of 90 kgs of drag pressure to shift even the largest fish from the bottom. Complementing this is the ultra-strong gearing that retrieves 80 meters of line per minute (under load) at full speed.

The Marine Power features Daiwa’s exclusive Power Lever for instant control of winding speed and power. A digital readout automatically displays the line let out, as well as distance retrieved from the bottom, so you know the depth of your lure or bait at all times. Upon retrieve, a programmable Auto-Stop feature ensures that the winding stops when your lure or bait reaches the surface.

This massive workhorse reel is not only packed with amazing technological innovations, but they’re also extremely durable and reliable. Featuring super corrosion resistant CRBB bearings, washable design and sealed electronics for smooth, long-lasting performance in the harsh marine environment, this is the ultimate reel for heavy-duty fishing.

The power cable screws into the base of the reel and connect to the power source via alligator clips. The Marine Power can be powered by connecting these cables to any on-board 12- or 24-Volt power source.

If you want the ultimate reel for the denizens of the deep think Marine Power 3000.



Features

Marine Power 3000 User Manual [7.3Mb PDF]

Unique Power Lever for instant control of winding speed and power

Digital readout measures line out, and distance retrieved from the bottom

Programmable auto stop feature stops winding when lure or bait reaches the surface

Powerful machined stainless-steel gear drive

Stainless steel line guide

Counter lamp

Memory backup function

Convenient 12-Volt DC Operation (acceptable range of voltage 12-16.8V)

Electric current usage No load – 6 amps, Stall – 12 amps, Maximum power – 40 amps



Product Features:

ALUMINIUM BODY

Lightweight and incredibly strong, aluminium allows strength and weightless to be achieved without the cost and corrosion issues of other metals such as magnesium.



CRBB

Lasting 12 times longer than standard stainless-steel bearings Daiwa’s CRBBs feature specially treated stainless steel, and a protective shield on the bearing race that seals out sand, fine grit, salt crystals and other abrasives. The result is a longer lasting bearing that’s protected from the corrosive elements that destroy traditional bearings.



LEVER DRAG

A lever control system that allows drag pressure to be easily applied by pushing the lever forward. Allows for increased pressure to applied and is ideal for jigging and deep-water angling.



MAGSEALED-BEARINGS

MagSeal protection is no longer just for the main shaft and rotor of a reel with MagSealed Ball Bearings providing ultimate protection for the most at-risk location such as the engine side plate and line roller.



POWER ASSIST

Daiwa’s advanced electric power system that delivers industry leading electric reel power and performance.



POWER LEVER

This lever allows you to go from stop to start to full power with the flick of switch. It’s like stepping on the gas pedal to accelerate.



Product Overview:

Product Code: 26866

Brand: Daiwa

Product Name: MARINEPOWER 3000 (12V)

Ball Bearings: 14(2CRBB)

Max Drag: 90kg

Gear Ratio: 1.7:1

Line Capacity: PE 1400/120lb; 1000/150lb

Weight: 5560g
